Functional Specifications
■ Supports 3D, Ethernet and Audio Return
■ Guaranteed 2160p, 1440p, 1080p, 1080i, Resolutions.
■ Works with all HDTVs, Blu-ray players, Xbox, PlayStation and other HDMI devices.
■ 1.4v Supports Transfer Rates of Up to 10.2 Gbps 2.0v Supports Transfer Rates of Up to 18 Gbps
■ Other Ethernet Sharing, HDCP Compliant, CEC Supported.
■ Supports True HD Dolby 7.1 and DTS-HD Master Audio.
■ Compatible with any device equipped with HDMI jack.
■ Application:LCD/LED TV computer High definition multimedia.
■Packing:PE bag;Custom: OEM ODM;Supply Ability:200000 Piece/Pieces per Month.
| Parameters | ||||||
| Specification | Advantages | |||||
| Conductors | 99.99% Oxygen-free copper | to deliver high-quality and stable digital signal | ||||
| Insulation (inner jacket) | HD-PE | Using foamed PE as the insulation, ensure image quality and transmit image signal with stability. | ||||
| First shielding | 100% Aluminum foil | prevent high frequency noises and interference of outward electromagnetic energy | ||||
| Second shielding | 100% Aluminum foil | prevent high frequency noises and interference of outward electromagnetic energy | ||||
| Third shielding | 95% AL+MG braid | for maximum avoiding of EMI and RFI | ||||
| Insulation (Outer jacket) | Environmental PVC jacket/protective nylon sleeve. (color optional) | Long lifetime; good protection for cable; | ||||
| Safe | ||||||
| appearance | Injection Plastic,Zn or Al alloy Metal shell type | Nice looking, high-end HDMI CABLE product | ||||
| Connector | Gold plated | ensure superior signal transfer and lifetime of maximum performance | ||||
| Configuration | 19+1 pin | Fully compliant to V2.0 specification | ||||
| Certification | RoHS,UL,CE | Authorized Certification for safety and security | ||||
| Color | Pearl golden, Matte black, Silver, Golden, Shiny black, white porcelain, black porcelain,chromel AND MORE | Variety of color options and attractive design to meet the needs of different customers | ||||
| Available gauge | 24/26/28/30AWG | AWG optional | ||||
| Outer Diamete | 9.0mm,8.0mm,7.3mm,6.0mm | AWG is correspondent to outer diameter. | ||||
| 24AWG-9.0mm 26AWG-8.0mm | ||||||
| 28AWG-7.3mm 30AWG-6.0mm | ||||||
| Available versions and lengths | V2.0 up to 40m(1-20m) optional | Different lengths for different usage | ||||
| V1.4 up to 100m(1-50m) optional | ||||||
| Electricals | Packaging & Delivery | |||||
| Quality Control | operation according to regulations & rules in ISO9001:2008 | Packaging Details:Polybag for individual package and carton box for container shipment.Or at customer's request. | ||||
| Voltage | DC300V 5M ohm/10ms | Port:Shen zheng | ||||
| Insulation Resistance | 10M min | Lead Time : | ||||
| Contact Resistance | 2 ohm max | Quantity(Pieces) | 500 - 2000 | 2001 - 5000 | 5001 - 8000 | >8000 |
| Working Temperature | -25℃-80℃ | Est. Time(days) | 14 | 17 | 21 | To be negotiated |
| Data transfer rate | 18Gbps Max | |||||
| Differential Impedance | 100±10Ω(TDR) | |||||
Factory and Product Introduction
Our factory was established in 2012 and has been dedicated to the research and development and production of flat HDMI cables for over 13 years, serving global OEM buyers and engineering cabling project customers. With a monthly supply capacity of 200,000 pieces and a complete OEM/ODM customization service, we have become a leading cable supplier in the European and American markets. The products strictly adhere to international standards (such as HDCP and CEC) to ensure compatibility and reliability, meeting the demanding requirements of high-end audio-visual equipment.

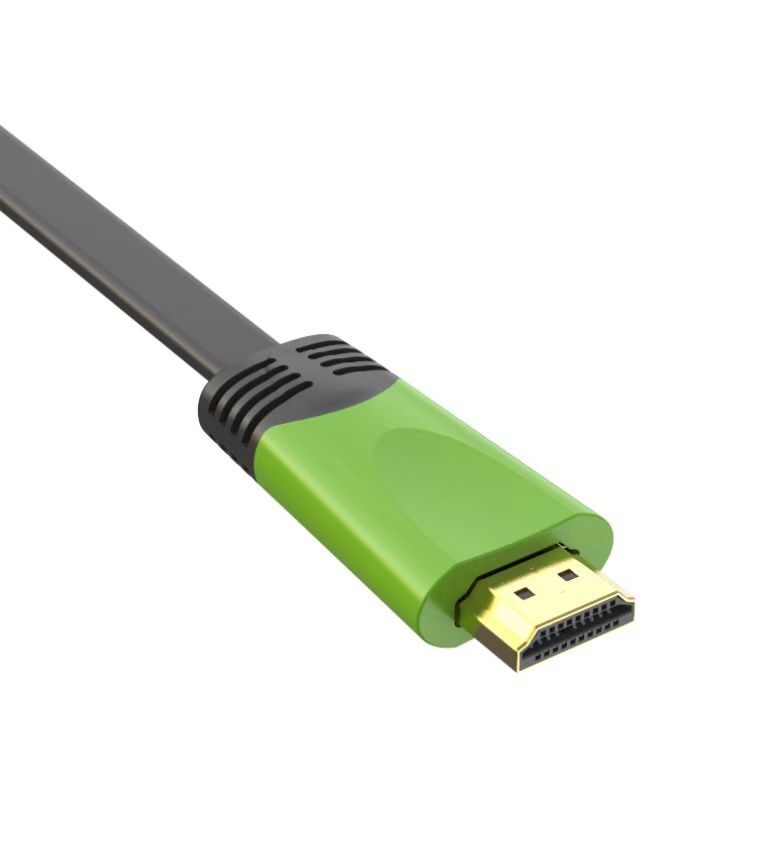

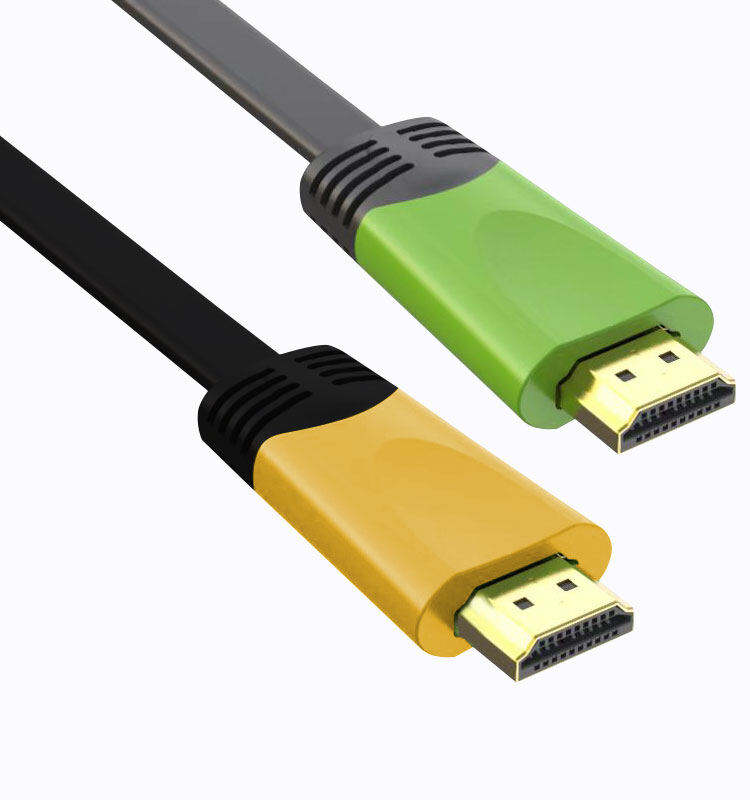

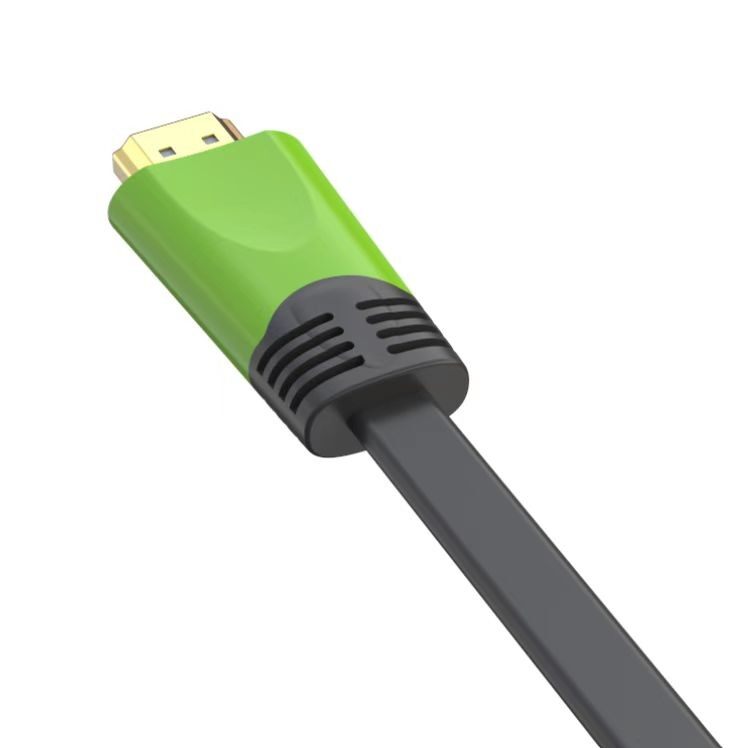

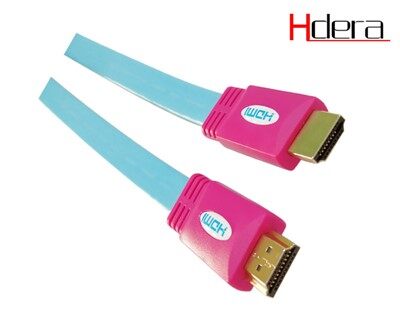

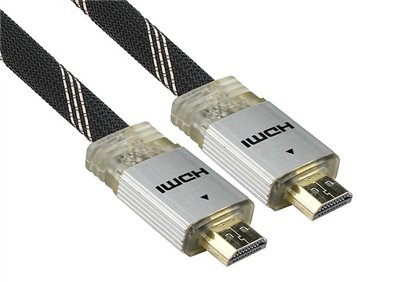

The HD1068 flat 4k hdmi cable is designed for modern high-definition applications. Adopting an innovative flat structure (with an outer diameter of only 13.5×3.5mm), it saves 70% space compared to traditional round wires and is particularly suitable for concealed engineering wiring. The product supports optional versions (1.4v or 2.0v), with a transmission rate of up to 18 Gbps, perfectly presenting 4K resolution (2160p) and 3D images.
Product Features
The core features of the HD1068 flat 4k hdmi cable are as follows:
1. Ultra-thin and flat design optimizes space and installation
Feature description: The thread body is only 3.5mm thick, assembled with injection-molded plastic and a green ABS shell. The color combination is free, highlighting a high-end and bright appearance.
2. 4K ultra-high-definition support, stable transmission without loss
Feature description: Supports 2160p/4K resolution, 3D and HDR. The rate of the 1.4v version is 10.2 Gbps, and that of the 2.0v version is 18 Gbps. Compatible with True HD Dolby 7.1 and DTS-HD audio.
3. Multiple shielding and durable materials ensure signal purity
Feature description: The shielding layer is AL+ML (aluminum foil + Mylar), the insulation layer is HD-PE, the sheath is PVC, and black appearance is available as an option.
4. Flexible customization options to meet diverse needs
Feature description: Optional versions (1.4v/2.0v), wire gauge (AWG 26/28/30), length (1m-15m), color (mainly black).
FAQ (Frequently Asked Questions)
1. Q: Does this HDMI cable support 4K? Why choose the 2.0v version?
A: Yes, HD1068 perfectly supports 4K/2160p resolution. The 2.0v version has a transmission rate of 18 Gbps (10.2 Gbps higher than 1.4v), capable of handling higher frame rates (such as 60Hz), ensuring smooth gaming or HDR video, and is particularly suitable for new devices.
2. Q: What are the practical advantages of flat design?
A: Flat wires (13.5×3.5mm) are easier to hide and bend, reducing installation space. It can avoid tripping risks in engineering wiring, and the wear-resistant sheath extends the service life.
3. Q: Is the flat 4k hdmi cable durable? How long is the warranty period?
A: It adopts an ABS shell and PVC sheath, resistant to 100,000 bends. The standard warranty is one year, and engineering-grade materials ensure a lifespan of over five years.
